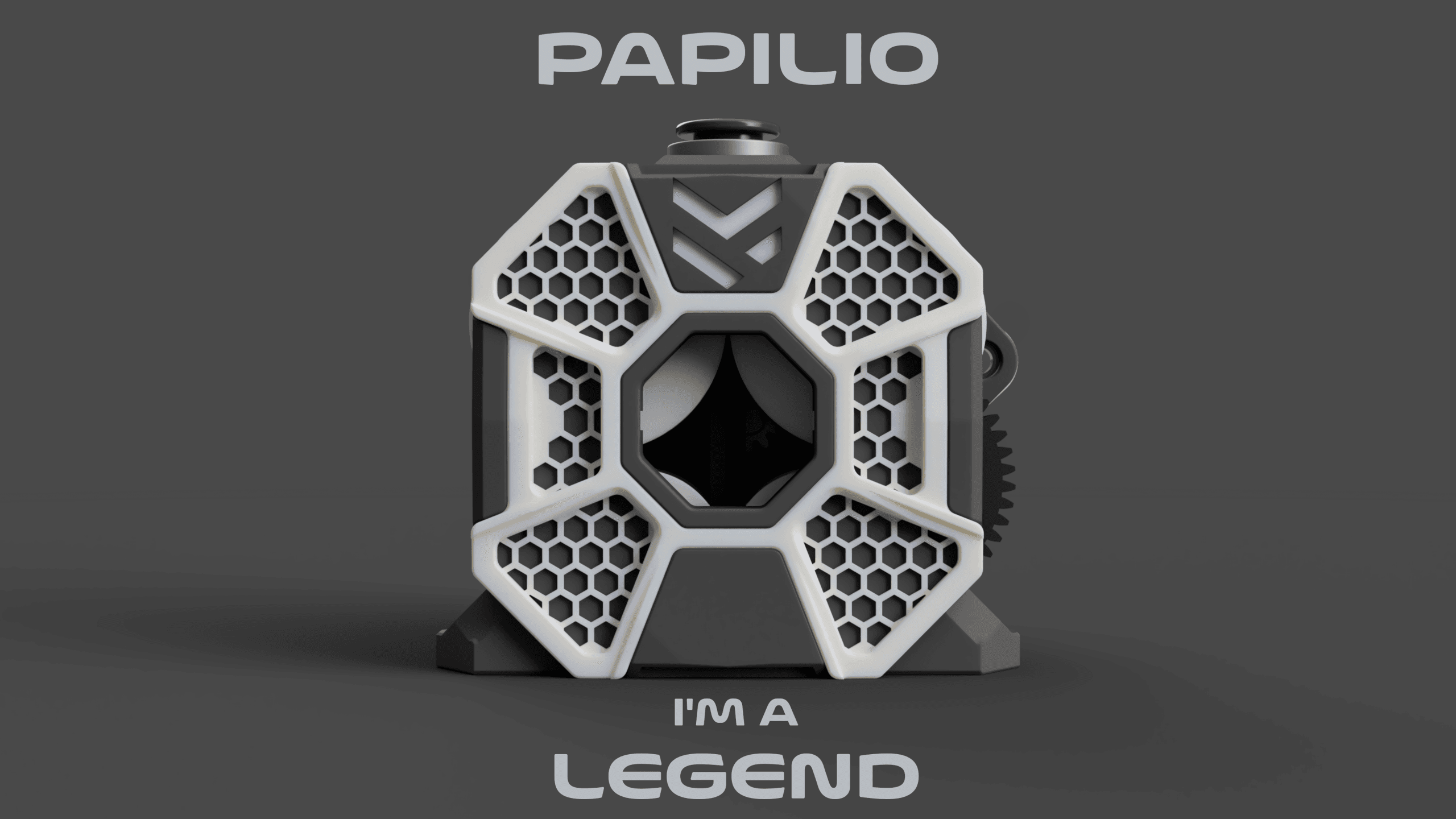

Papilio Legend Extruder Hardware Kit

The Papilio Legend is the third — and likely final — evolution of the Papilio extruder.
It is the most compact iteration to date, combining the belt system from the Lite with the pulley layout of the OG. All pulleys and gears run on pins supported by bearings, ensuring a very smooth and highly precise belt movement.

Bill of Materials (BOM)

• 2x 6mm 94mm GT2 closed-loop belts
• 10x MF63 bearings
• 2x 3x14mm pins
• 3x 3x20mm pins
• 3x 12–44T gears
• 4x 6x3x0.5mm Shims
• 1x ECAS coupling
• 2x M3 hex nuts
• 1x M3x10mm screw BHCS
• 1x M3x6mm screw BHCS
