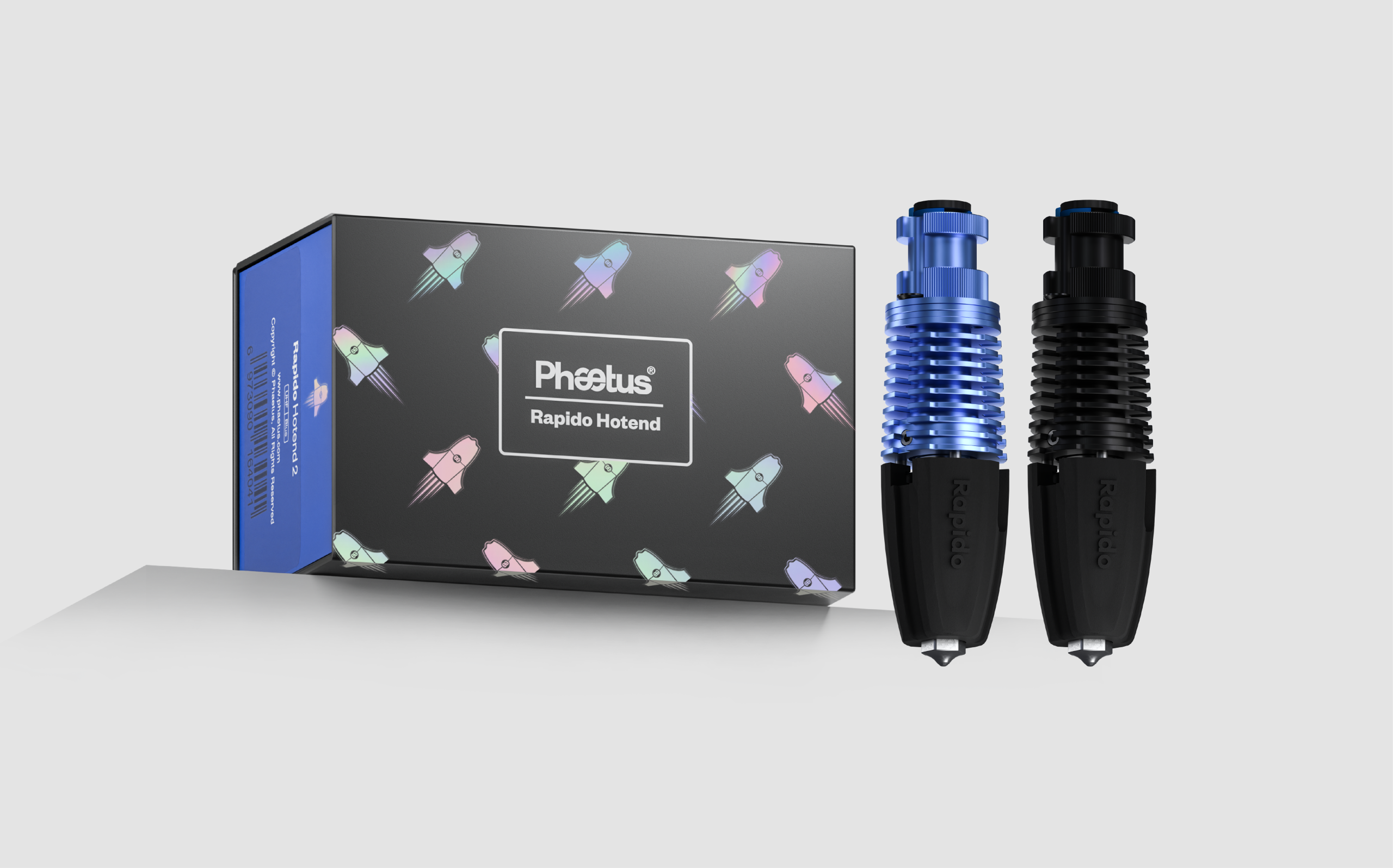

Phaetus Rapido Plus 2 UHF Hotend (Black)

We decided to not get HF’s in stock as we could just sell UHF cheaper and give everyone the option to go nuts with flow later, as a bonus they’re also all black so even less need to think about which to get! Then we also decided to make it even simpler and not bother with the none plus, PT1000’s for everyone!

Features of the Rapido Plus Hotends at a glance:

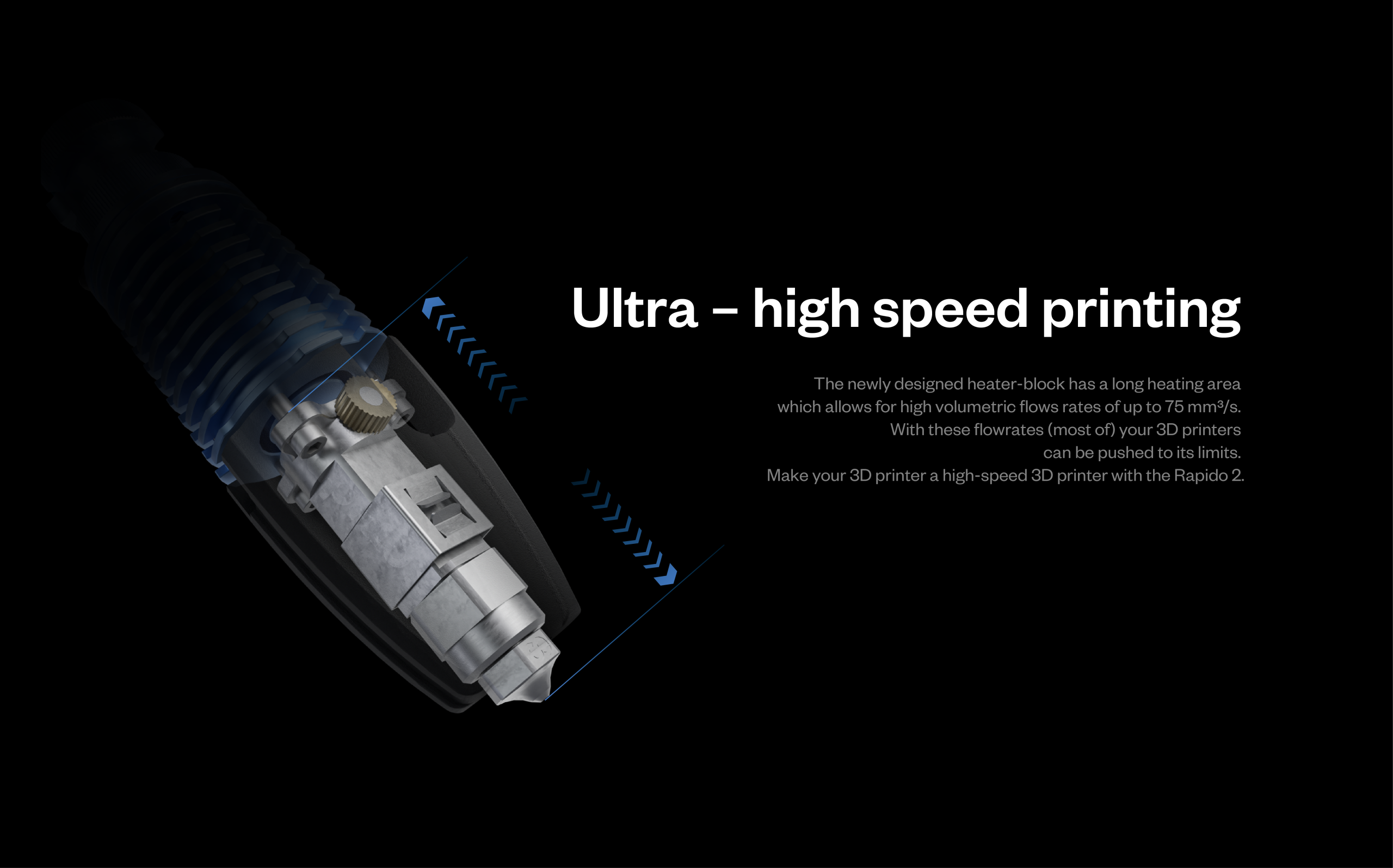

New heater block design for high-speed printing

The new heater block design features a larger melting zone to meet the needs of high-speed, high-temperature printing.

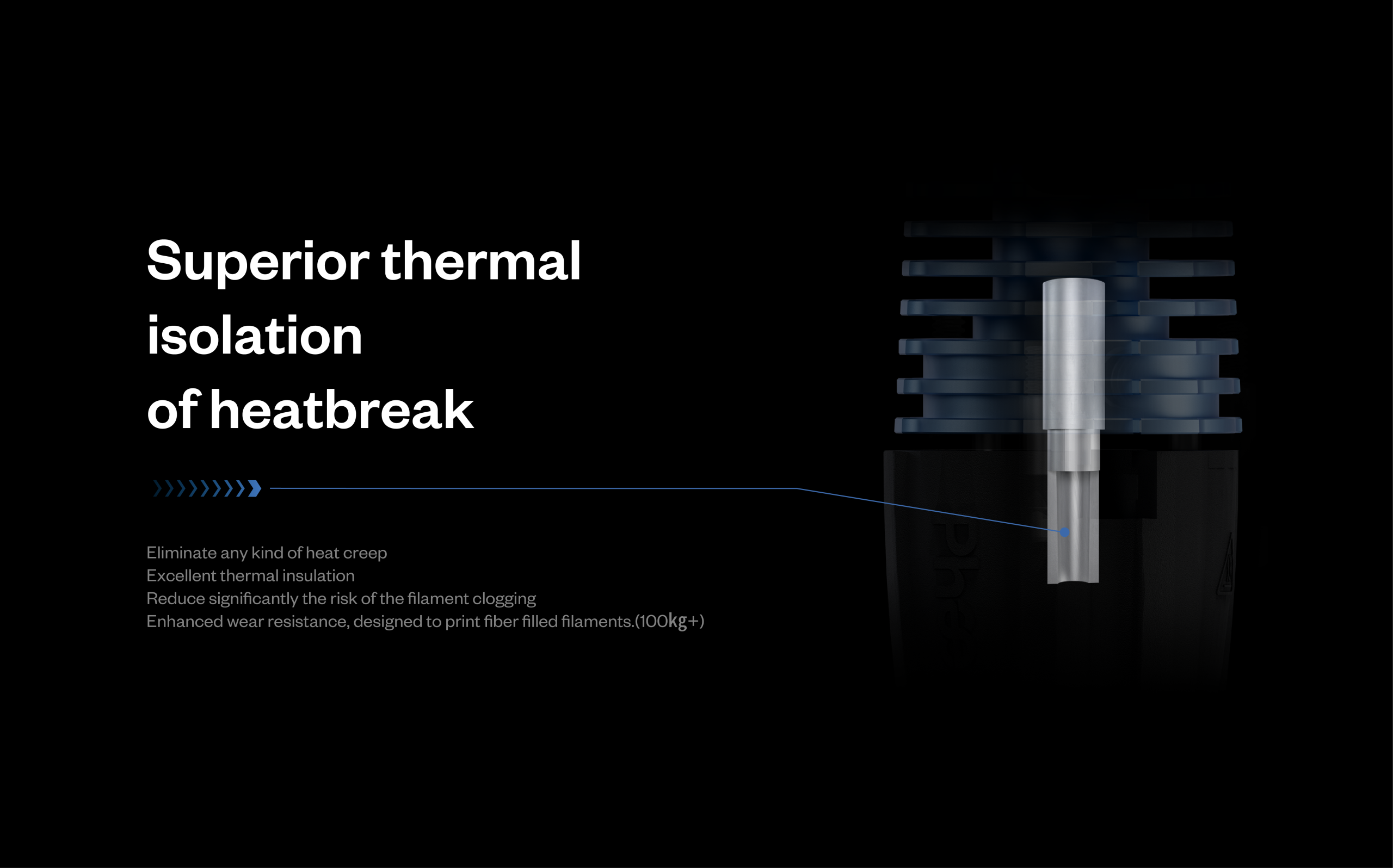

Titanium heatbreak

Compared to the stainless steel heatbreak of the Rapido Plus Hotends, Rapido Plus 2 hotends feature a strong and lightweight titanium heatbreak. This robust material is characterised by lower thermal conductivity and less cooling capacity required, as well as excellent thermal insulation. This ensures better extrusion control and higher print quality.

The optimised structure also reduces the risk of deformation and clogging.

Ceramic heater planar structure

The 90-watt ceramic heater of the Rapido Plus Hotend 2 has a planar structure that is characterised by high reliability and higher heating output. To illustrate, the heating element heats up to 200°C in an incredible 35 seconds!

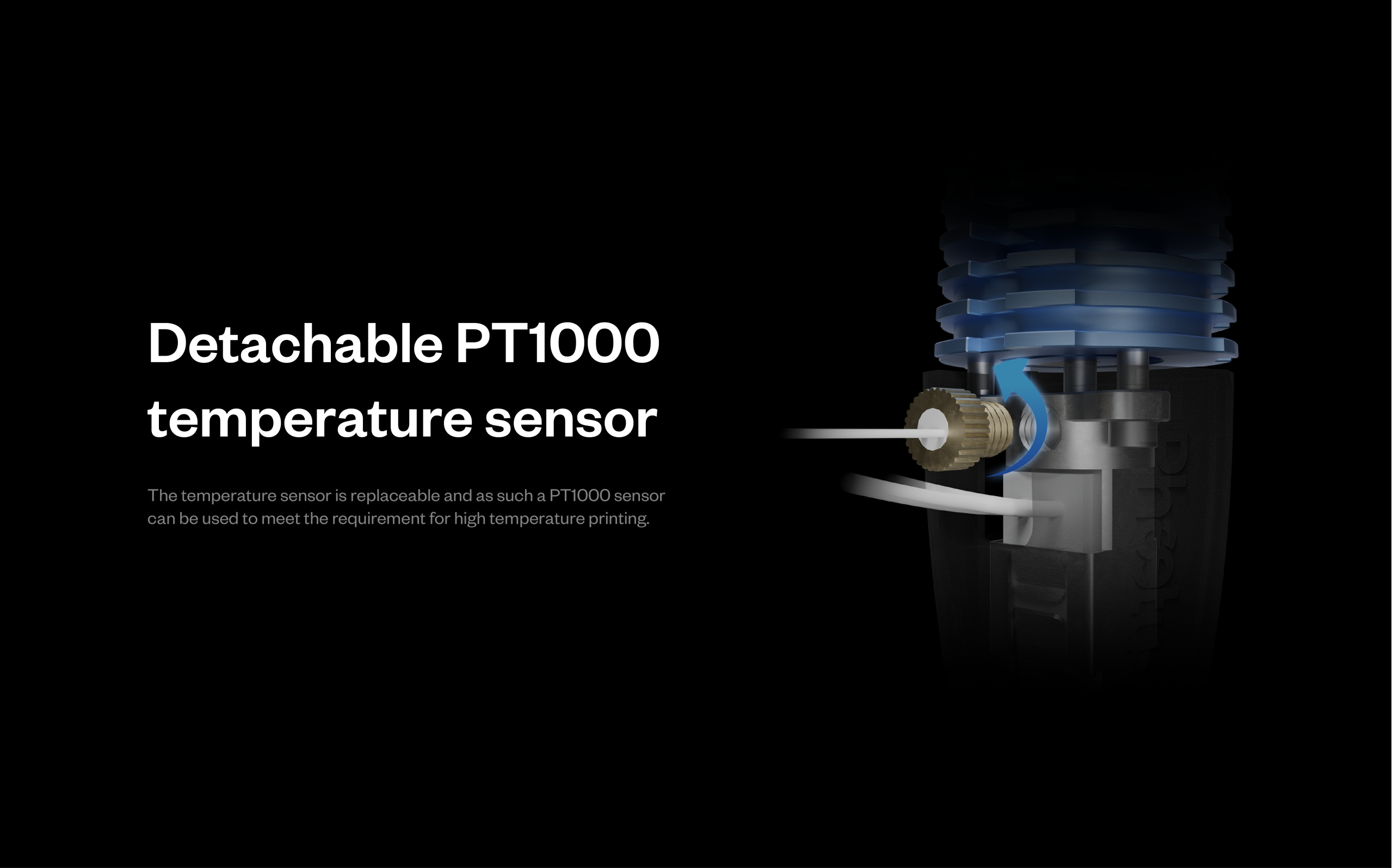

Removable thermistor

Rapido Plus Hotend 2 uses a removable PT1000 thermistor that is easy to service and replace.

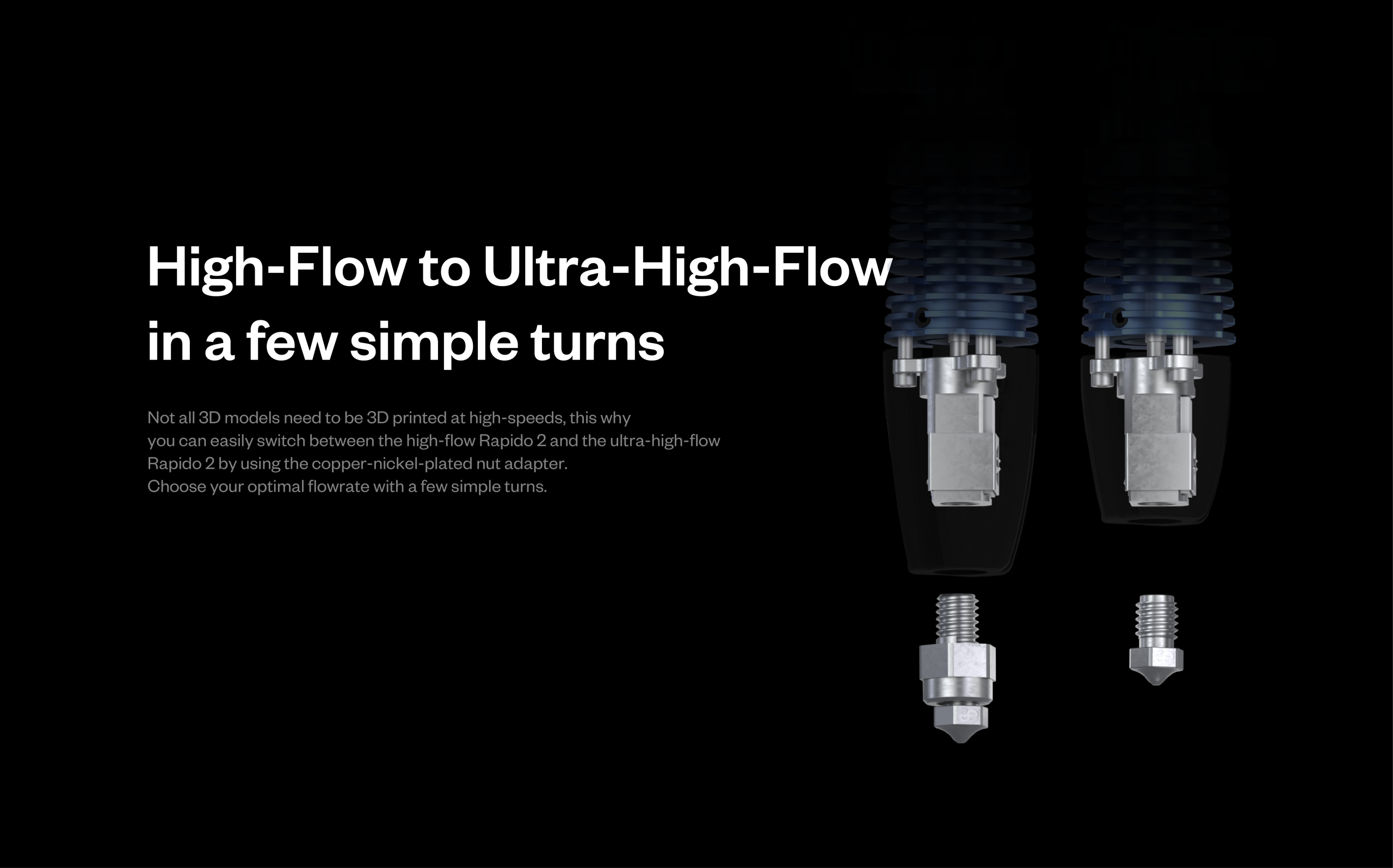

Quickly switch between high-flow & ultra-high-flow printheads

A unique structural design enables fast switching between high-flow and ultra-high-flow printheads. The different nozzle types meet the needs of high-temperature and fibre filament printing.

The adapter included allows you to quickly switch between the hotends to meet any requirements. With a few simple twists, you can set the optimal flow rate!

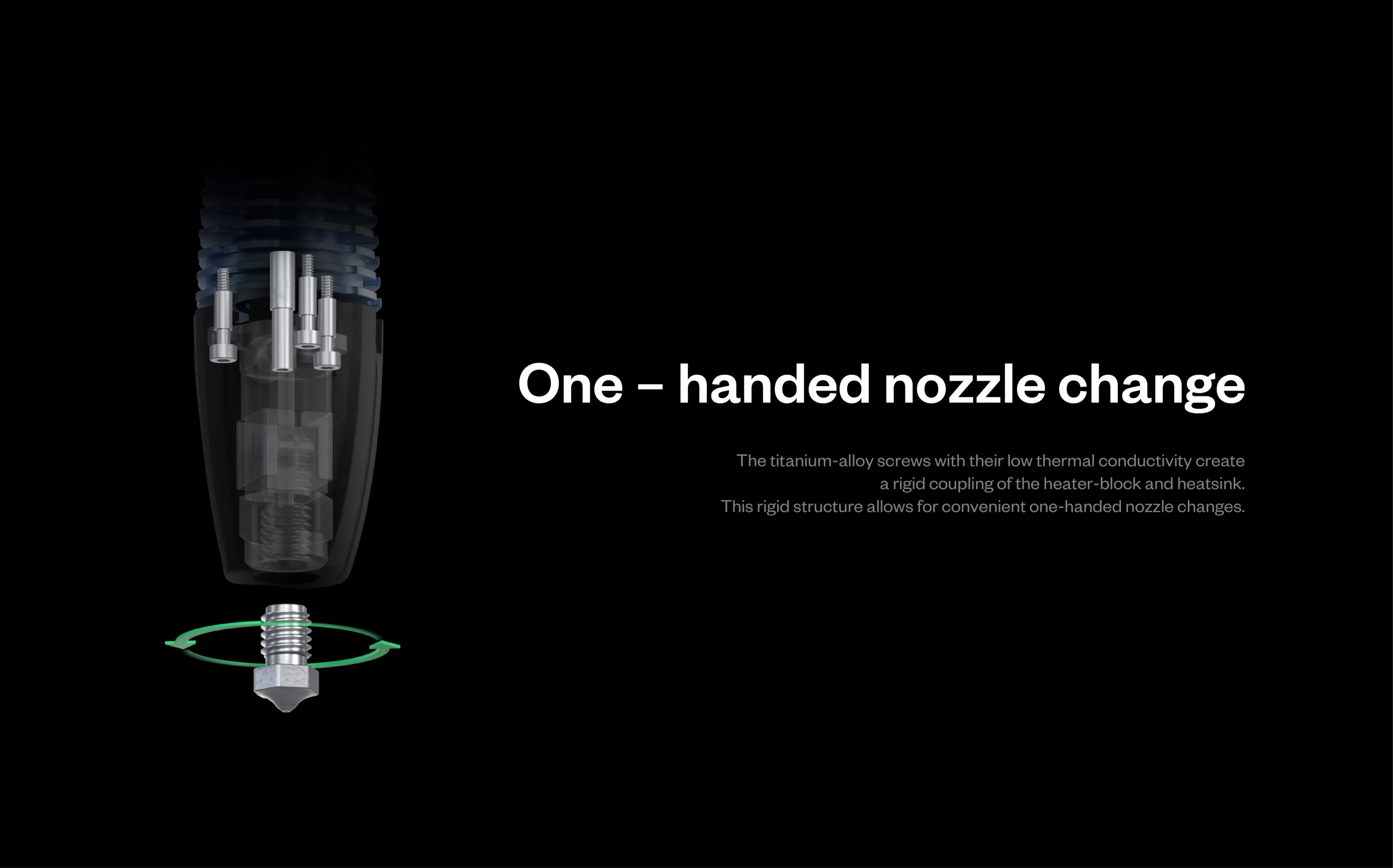

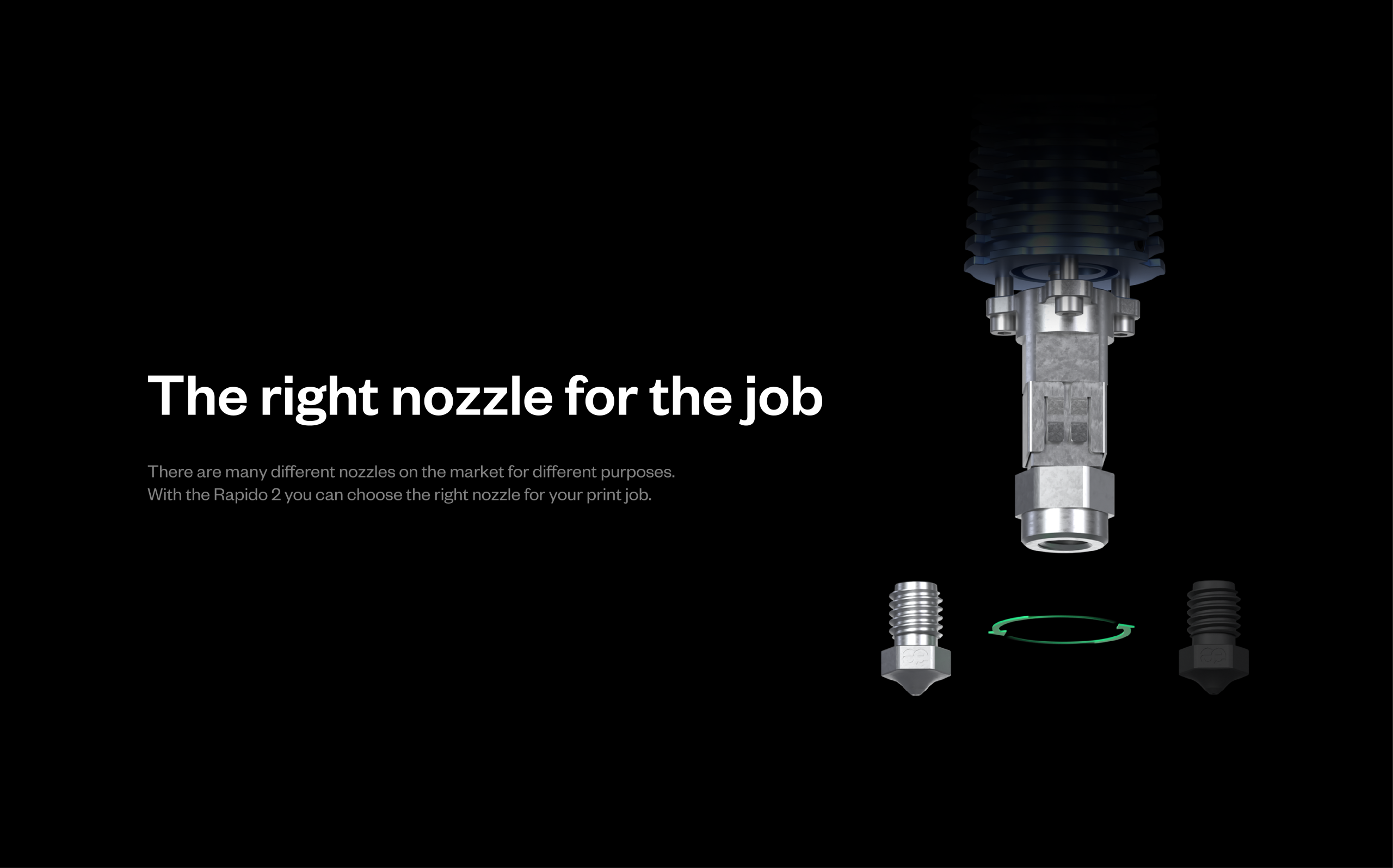

Nozzle change with one hand

The titanium alloy screws, which ensure a firm connection between the heating block and the heat sink, are characterised by low thermal conductivity. This rigid structure allows for easy one-handed nozzle changing.

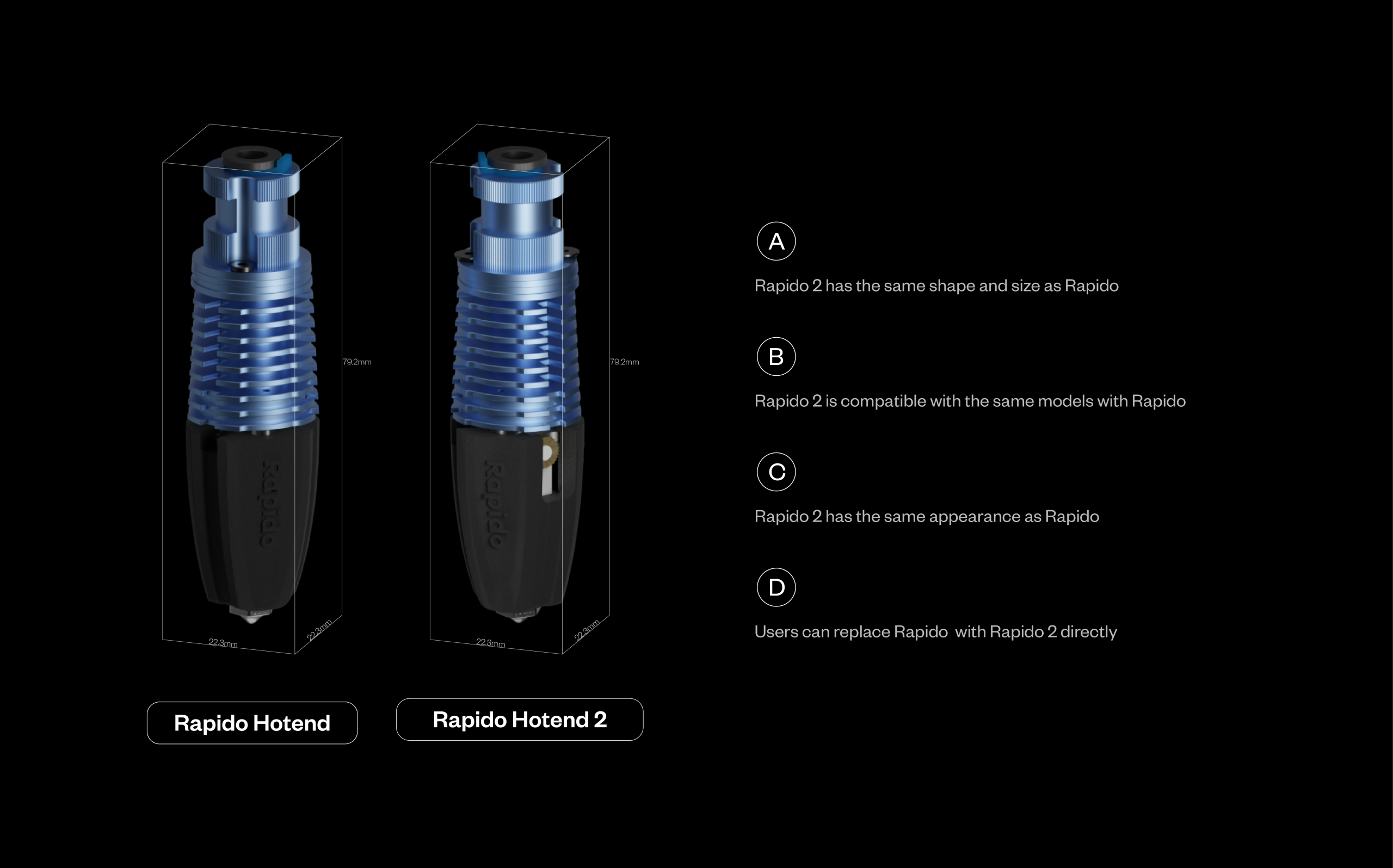

Danger! Although Rapido Plus Hotend and Rapido Plus Hotend 2 have the same dimensions, their heating element and heatsink are different. Therefore, these cannot be interchanged.

Tip: The maximum flow rate during extrusion is 75 mm³/s.

Included:

• 4 x M2.5×8.0 Socket Head Screws
• 2 x M2.5×5 Hex Socket Screws
• 1 x M2x1.8 Button Head Screws with O-Rings
• 1 x Black Heatblock Extension Cable
• 1 x White Thermistor Extension Cable
• 1 x 1.5/2.0 Hex Key
• 1 x Bowden Cable
• 1 x Coupling Clip
• 1 x Extension Nut made of Plated Copper
• 1 x UHF Silicone Sock
• 1 x H10.0 Wrench
